Visualization
\tableofcontents
Chrono::Vehicle provides visualization support both for run-time interactive simulations, as well as for high-quality post-processing rendering for generating animations. Currently, run-time simulation support expands on the underlying [Chrono::Irrlicht](@ref irrlicht_module) module for sequential simulations or the more computationally efficient but more limited [Chrono::OpenGL](@ref opengl_module) module for parallel simulations involving large-scale granular terrain representations. Support for ray-traced renderings of individual simulation frames is offered through utility functions that can be called from within the simulation loop to export data files with current visualization assets information and a POV-Ray script that can batch-process these files to generate frame images.
VSG-based run-time visualization
The vehicle VSG-based run-time visualization uses a customized plugin to the base Chrono::VSG run-time visualization system to provide vehicle-specific capabilities, such as:
vehicle-centric camera ("chase cam")
display of vehicle-specific information
control over visibility of individual vehicle subsystems
etc.

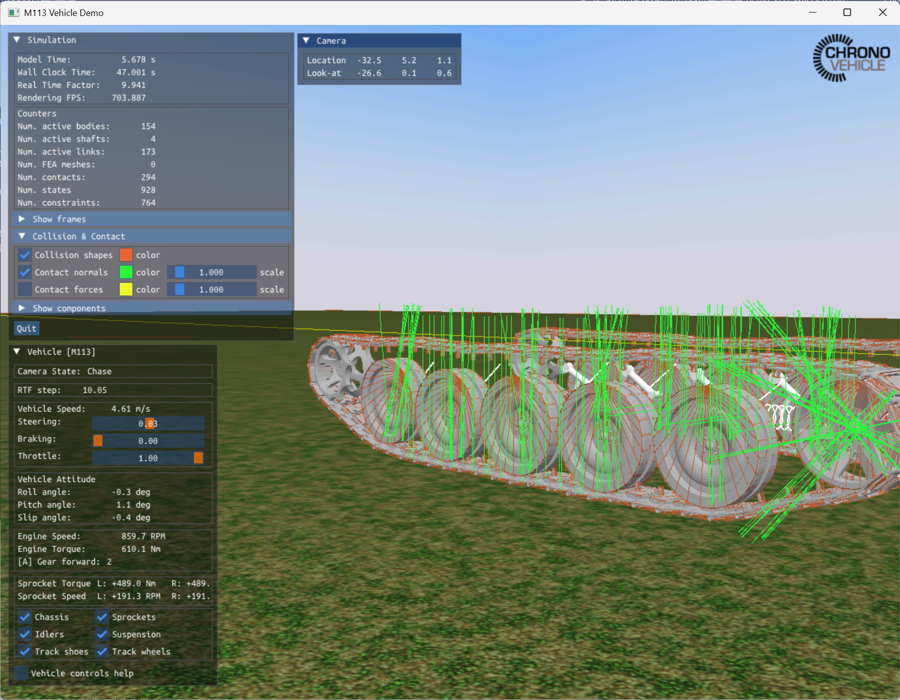

The following images are snapshots from Chrono::Vehicle simulations.
Irrlicht-based run-time visualization
The vehicle Irrlicht-based run-time visualization uses the customized Irrlicht applications [ChWheeledVehicleIrrApp](@ref chrono::vehicle::ChWheeledVehicleVisualSystemIrrlicht) and [ChTrackedVehicleIrrApp](@ref chrono::vehicle::ChTrackedVehicleVisualSystemIrrlicht) for wheeled and tracked vehicles, respectively.
These are extensions of the base [ChIrrApp](@ref chrono::irrlicht::ChVisualSystemIrrlicht) application to allow:
using a vehicle-centric camera location (point of view)
displaying additional (vehicle-specific) statistics, such as vehicle speed, current driver inputs, powertrain torques, wheel and sprocket torques, etc.
rendering of specified contact forces (tracked vehicles)
The following images are snapshots from Chrono::Vehicle simulations.
Off-line rendering with POV-Ray
Off-line rendering requires the following steps:
collect system data at each frame to be rendered
optionally, prepare mesh data files in a format specific to the desired rendering engine
post-process data files to render the scene at each frame
optionally, combine multiple frame images into an animation
Chrono::Vehicle provides limited support for this workflow model and the POV-Ray ray-tracing program.
Preparing output data files
At each simulation frame that needs to be post-processed, call the function [WriteVisualizationAssets](@ref chrono::utils::WriteVisualizationAssets).
This function will output a comma separated value (CSV) file with a user-provided name containing.
The output file contains information on all bodies in the Chrono system (positions and orientations), all associated visualization assets (position, orientation, type, and asset-specific parameters), and selected types of joints. Note that mesh visualization assets are identified through their respective mesh name.
Preparing mesh data files
For rendering with POV-Ray, the Wavefront OBJ file corresponding to a mesh visualization asset must be converted to a macro in a POV-Ray input file. This can be done by
using the function [WriteMeshPovray](@ref chrono::utils::WriteMeshPovray)
using a specialized tool such as PoseRay
If using the rendering script described below, these mesh macro POV-Ray input files are expected to have a name identical to the corresponding mesh name. Furthermore, such a mesh POV-Ray input file must define a single macro (with the same name as the mesh name); as such, files generated by PoseRay need to be manually edited (see the examples provided with the Chrono distribution, for example data/vehicle/hmmwv/POV-Ray/hmmwv_chassis.inp).
Post-process files with POV-Ray
The Chrono distribution includes (in the directory src/demos/vehicle/) a sample POV-Ray script (renderZ.pov) which can be used for (batch) processing of output data files in the format generated by WriteVisualizationAssets. This script assumes that all data is provided in a right-handed frame with Z up (ISO reference frame) and performs all required transformations to POV-Ray's Y-up left-handed frames.
This script provides the following user controls:
render a single frame or a sequence of frames (batch processing)

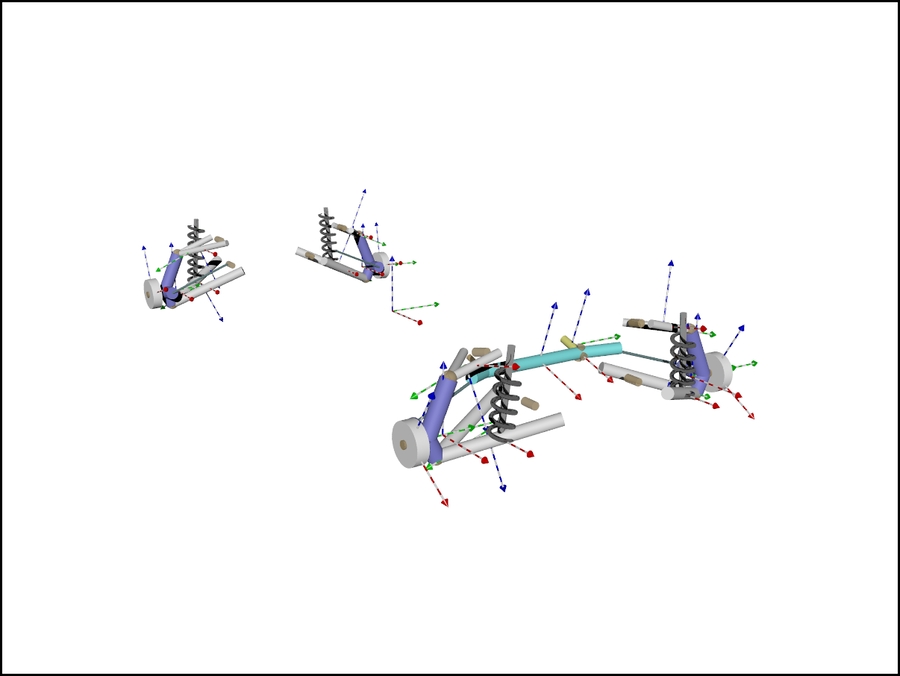

turn on/off rendering of body reference frames
turn on/off rendering of the global reference frame
turn on/off rendering of assets
turn on/off rendering of assets fixed to ground
turn on/off rendering of supported joints
turn on/off rendering of springs and dampers
specify dimensions of geometric shapes representing joints
camera location and look-at point
enable/disable shadows
optionally render environment (ground and sky)
Note that the renderZ.pov script is provided only as a starting point. More complex and photo-realistic images can be generated with POV-Ray, using more sophisticated materials and environments.

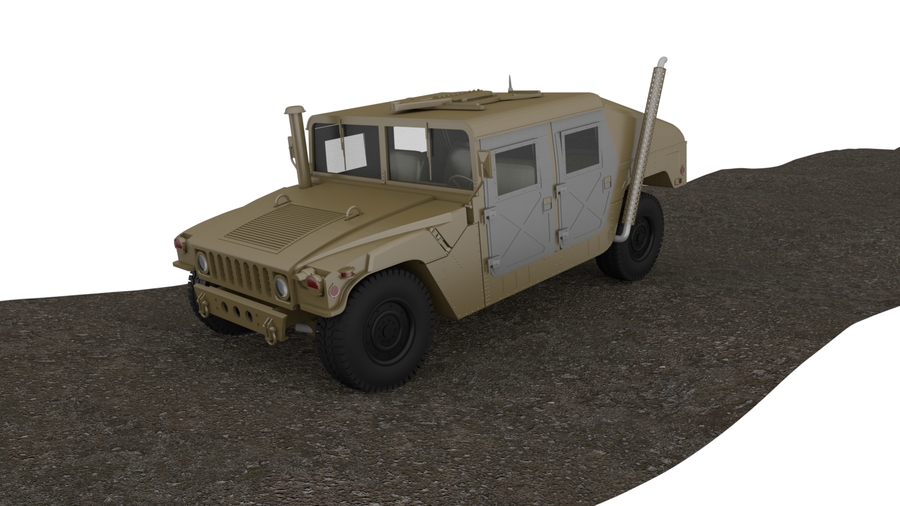

Finally, a similar workflow can be used to render with different engines, other than POV-Ray. For example, the image below was generated, using a data file generated by WriteVisualizationAssets but using the Mitsuba engine.
